DIN 444 Swing Bolts, Steel, blackened

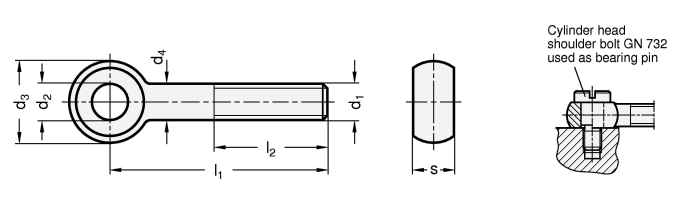

| d1 | l1 | l2 | d2 H7 | d3 -0,3 | s -0,15 | d4 | ||
|---|---|---|---|---|---|---|---|---|
| M 5 | 50 | 75 | - | 32 | 5 | 12 | 6 | 5 |
| M 6 | 50 | 75 | - | 32 | 6 | 14 | 7 | 6 |
| M 8 | 50 | 75 | - | 32 | 8 | 18 | 9 | 8 |
| M 10 | 50 | 75 | 100 | 40 | 10 | 20 | 12 | 10 |
| M 12 | 75 | 100 | 130 | 40 | 12 | 25 | 14 | 12 |
| M 16 | 75 | 100 | 130 | 50 | 16 | 32 | 17 | 16 |
| M 20 | 100 | 130 | 160 | 63 | 18 | 40 | 22 | 20 |
Filter combination produces no result.
Specification
Steel
RoHS
- Property class 5.8
- Turned, thread rolled
- Blackened
RoHS
Information
Precision type swing bolts DIN 444 are mainly used for jigs and fixtures.
Produced in a precision version as is required in machine and jig construction, the stated tolerances are lower than those which are required in the DIN product classes.
In deviation from the official standard sheet, the steel version is produced in property class 5.8 (instead of 4.6 / 5.6). In addition, the thread length l2 is longer.
For stocking purposes cylinder head shoulder bolts GN 732.1 can be used for the sizes M 6, M 8, M 10 and M 12.
| How to order |
| ||||
DIN 444-M12-100 |
