Aluminum, Black Anodized

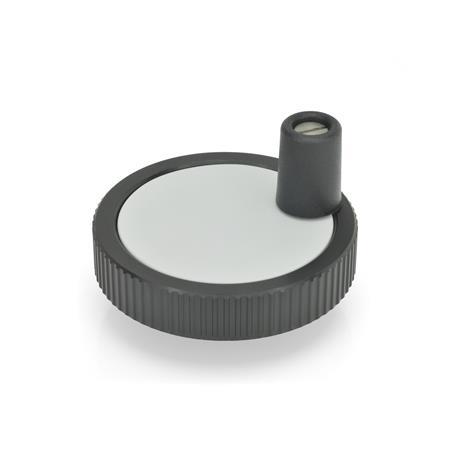

GN 736 Control Handwheels, Aluminium black, anodized
Bore code
| B | Without keyway |
| K | With keyway |
| Z | With collet |
Type
| A | Without handle |
| D | With revolving handle |
| d1 | d2 H8 Bore | d3 | d4 | d5 | b-0,5 | h | l1 | l2 | l3 ≈ | r | Ø Handle |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 10 | 22 | 37 | 39,5 | 13 | 3,8 | 23 | 17 | 19 | 15,5 | 13 |
| 62 | 10 | 25 | 47 | 49,5 | 13 | 3,8 | 23 | 17 | 21 | 20,5 | 14 |
Filter combination produces no result.
Specification
Aluminum
Black anodized
Hub cover
Plastic, light gray
Collet / hexagon nut
Brass
Stainless steel grub screw DIN 916
With internal hexagon and serrated point
Revolving cylindrical handles GN 599.5
Keyway P9 DIN 6885 Page 1
ISO Fundamental Tolerances
Plastic Characteristics
Stainless Steel Characteristics
RoHS
Black anodized
Hub cover
Plastic, light gray
Collet / hexagon nut
Brass
Stainless steel grub screw DIN 916
With internal hexagon and serrated point
Revolving cylindrical handles GN 599.5
- Plastic, Technopolymer
Black, matte - Spindle
Stainless steel AISI 303
Keyway P9 DIN 6885 Page 1
ISO Fundamental Tolerances
Plastic Characteristics
Stainless Steel Characteristics
RoHS
Information
Control handwheels GN 736 are used for setting operations with low torque.
Coarse setting is made by means of the cylindrical handle (fingertip grip) followed by fine setting using the knurled rim of the handwheel.
| How to order |
| ||||||||
GN 736-52-B10-D |
