Barbed Fitting / Thread

GN 480.7 Stainless Steel Hose Adapters

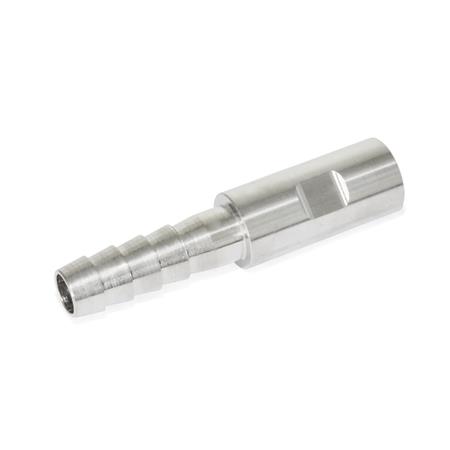

Stainless Steel Hose Adapters GN 480.7 thumbnail

Stainless Steel Hose Adapters GN 480.7 sketch

Show filter

d₁ h9	d₂ - t Thread-Ø - Thread depth			d₃	d₄	l₁	l₂	A/F

D 10	M 5 - 8,5	M 6 - 10,5	-	4	2,5	30	48	8
D 10	M 5 - 8,5	M 6 - 10,5	-	6	4,5	30	57	8
D 12	M 7 - 11,5	M 8x1 - 10	-	6	4,5	30	57	10
D 12	M 7 - 11,5	M 8x1 - 10	-	9	7	30	63	10
D 15	M 10x1 - 10	G 1/8 - 8	-	9	7	35	68	13
D 15	M 10x1 - 10	G 1/8 - 8	-	10	8	35	71	13
D 16	M 12x1,5 - 14	G 1/8 - 8	-	10	8	35	71	14
D 16	M 12x1,5 - 14	-	-	12	9	35	71	14
D 16	G 1/8 - 8	-	-	12	8	35	71	14
D 20	M 16x1,5 - 15	G 3/8 - 12	G 1/4 - 12	12	9	40	76	18
D 20	M 16x1,5 - 15	G 3/8 -12	G 1/4 - 12	16	12	40	76	18

Filter combination produces no result.

Specification

Stainless steel AISI 304
Plain, unfinished

ISO Fundamental Tolerances

Stainless Steel Characteristics

RoHS

Information

Hose adapters GN 480.7 can attach e.g. air nozzles or coolant nozzles and their feed pipes with mountings clamps and hold them in position.

The d₂ / d₃ thread and barbed fitting diameters are compatible with the most common bolt and internal hose diameters. Hose lines are attached to the barbed fitting with suitable hose clamps, securing them against slipping off.
