Aluminum

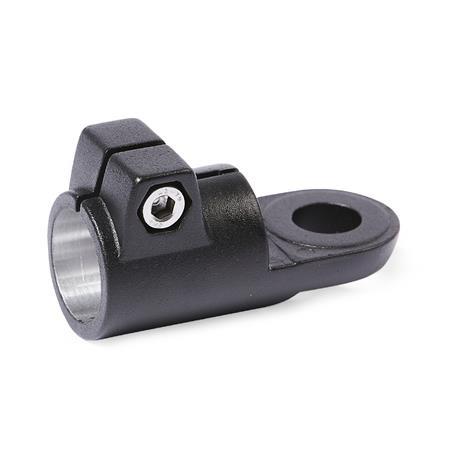

GN 276.4 Sensor Holders
Identification no.
| 2 | With stainless steel socket cap srew DIN 912 |
| d1 Bore for clamping Ø | d2 Bore for sensor | b Swivel width | d3 | k | l1 | l2 | m | t | z Screw location | Accessory Recom. hand lever GN 911 for z l3 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| B 20 | B 18 | B 30 | 40 | 50 | 42,5 | 92 | 52 | 72 | 10 | M8-25 | - |
| B 25 | B 18 | B 30 | 40 | 50 | 42,5 | 92 | 52 | 72 | 10 | M8-25 | 63 | 78 |
| B 30 | B 18 | B 30 | 40 | 50 | 42,5 | 92 | 52 | 72 | 10 | M8-25 | 63 | 78 |
Filter combination produces no result.
Specification
Aluminum
Powder coated
Black, RAL 9005, textured finishSW
Socket cap screws DIN 912
Stainless steel AISI 304
Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring
RoHS
Powder coated
Black, RAL 9005, textured finishSW
Socket cap screws DIN 912
Stainless steel AISI 304
Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring
RoHS
Accessory
Adjustable Hand Levers GN 911Information
The clamping bore of sensor holders GN 276.4 is mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.
At the screw location z, the socket cap screw reduces the bore cross-section for clamping.
For clamping without tools, the socket cap screw can be replaced by an adjustable hand lever GN 911 listed in the table as accessory.
| How to order |
| ||||||||
GN 276.4-B20-B18-2-SW |
