with Damping Washer

GN 7062.3 Semi-Split Stainless Steel Shaft Collars

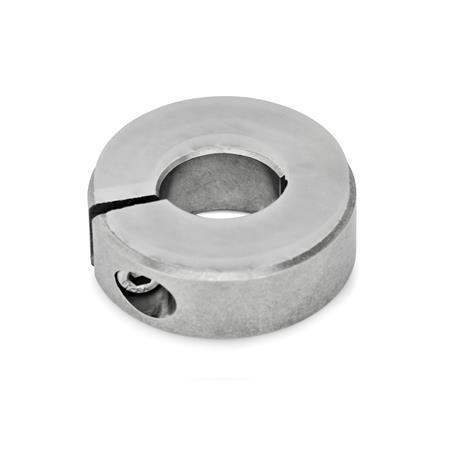

Semi Split Stainless Steel Shaft Collars GN 7062.3 thumbnail

Semi Split Stainless Steel Shaft Collars GN 7062.3 sketch

Show filter

d₁	d₂ H10 recommended shaft tolerance h11		b₁	b₂	d₃	s	x ≈ max. protrusion of cap screw	Adjustable hand lever for d₃

30	B 12	-	11	13	M 4	2,1	0,7	GN 311-30-M4-12-SW
32	B 14	-	11	13	M 4	2,1	0,7	GN 311-30-M4-12-SW
36	B 15	B 16	13	15	M 5	2,1	1,4	GN 311-30-M5-13-SW
42	B 18	B 20	15	18	M 5	3	0,6	GN 311-30-M5-15-SW
48	B 22	B 25	15	18	M 5	3	0	GN 311-45-M5-16-SW
55	B 28	B 30	15	18	M 6	3	0,5	GN 311-45-M6-18-SW
60	B 32	B 35	15	18	M 6	4	0,4	GN 311-45-M6-19-SW
65	B 40	-	15	18	M 6	4	0,5	GN 311-45-M6-20-SW

Filter combination produces no result.

Specification

Stainless steelNI
Sintered steel AISI 316 LHC

Damping washer
Elastomer (PUR)

70 Shore A
Temperature resistant up to 80 °C
Transparent

Socket cap screw DIN 912
Stainless steel AISI 304

ISO Fundamental Tolerances

Elastomer Characteristics

Stainless Steel Characteristics

Highlights / Product information shaft collars

RoHS

Accessory

Adjustable hand levers GN 311

Information

The affixed damping washer of the semi-split stainless steel shaft collars GN 7062.3 absorbs mild shocks and has a sound-damping effect when the shaft collars come into contact with other components.

They can be assembled safely and easily with a high clamping force by reducing the slot height, without damaging the surface of shafts and axles.

The thread d₃ for sizes d₁ = 30 to 36 is designed as a through hole; for sizes d₁ = 42 and larger, it is designed as blind hole.
