Plastic, without Thread

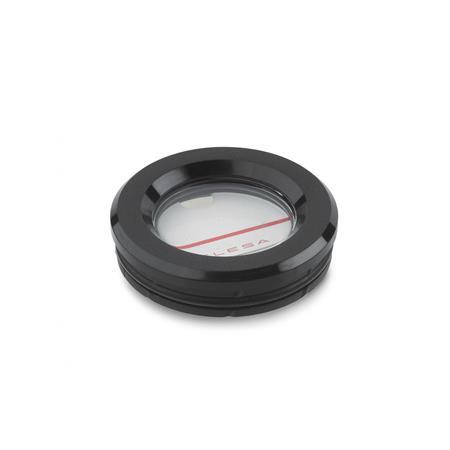

GN 545.2 Oil Sight Glasses, Resistant up to 100°C
ELESA Original design HRT.
Type
| A | with reflector |
| B | without reflector |
| d1 Window glass | d2 Bore-Ø | d3 | b min. | l1 | l2 |
|---|---|---|---|---|---|
| 15 | 26 +0,2 | 28 | 6 | 7 | 4,5 |
| 20 | 32 +0,2 | 36 | 8 | 10 | 5,5 |
| 25 | 38 +0,2 | 42 | 8 | 10 | 5,5 |
| 40 | 60 -0,2 | 64 | 9 | 11 | 5,5 |
Filter combination produces no result.
Specification
Housing
Plastic (Polyamide PA)
Sight glass
Plastic
Crystal clear Polyamide (PA 6-T)
O-Ring
Rubber NBR (Perbunan®)
Reflector
Aluminum
RoHS
Plastic (Polyamide PA)
- Temperature resistant up to 100 °C
- BlackSW
Sight glass
Plastic
Crystal clear Polyamide (PA 6-T)
O-Ring
Rubber NBR (Perbunan®)
Reflector
Aluminum
- White lacquered
- With red oil level mark
RoHS
Information
This oil sight glasses GN 545.2 do not require a thread.
The obliquely placed ribs and the elasticity of the plastic ensure that the oil level sight glass fits firmly into the port that even a limited over- pressurisation can be contained.
The window glass is recessed, giving better protection to the window.
Assembly instruction:
Press in the oil sight glass manually, then possibly use an intermediate layer such as wood or a hammer. Chamfer hole 1x45° and grease slightly the outside surface of the O-ring to make assembly easier.
