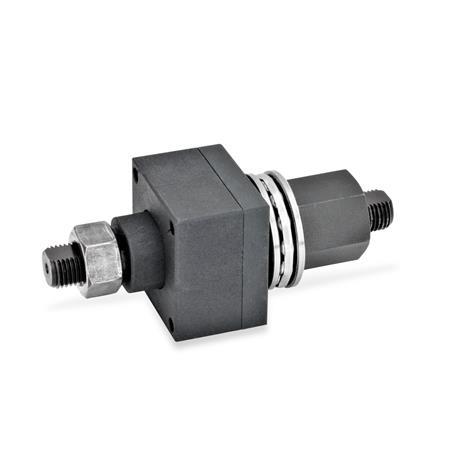

GN 123 Sheet Metal Punches

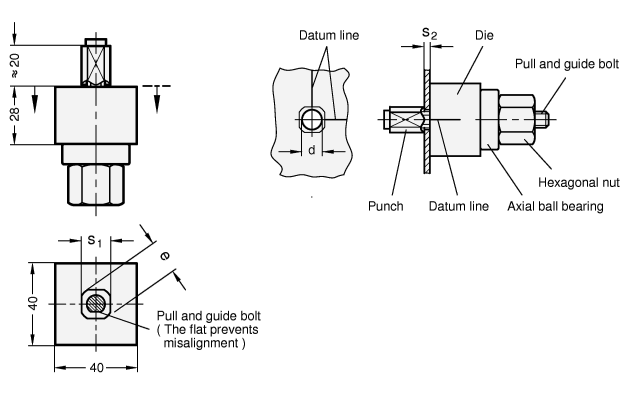

| s1 +0,1 Square | e Ø+0,5 | d Pilot drilling | s2 max. sheet metal thickness |
|---|---|---|---|
| V 14,1 | 16,3 | 11 | 2 |
| V 20,1 | 22,5 | 15 | 2 |
Filter combination produces no result.
Specification
Steel
Punch and die
hardened (56 ÷ 58 HRC)
RoHS
Punch and die
hardened (56 ÷ 58 HRC)
RoHS
On request
Sheet metal punches GN 123.5 for stainless steel sheet
Information
These sheet metal punches GN 123 allow the operator to punch in a simple way fixing holes in sheet metal doors for latches with square V14 and V20.
Sheet metal punches GN 123 are ideally suited for punching holes into sheet metal up to 2mm thickness.
Assembly instruction
Set predrill hole d. We recommend using an adhesive tape with the centre of the punch hole and the datum lines showing.
Insert pull bolt with punch.
Attach the die, align along the datum lines and fix in place with the hexagon nut / set punch hole.
| How to order |
| ||
GN 123-V14,1 |
