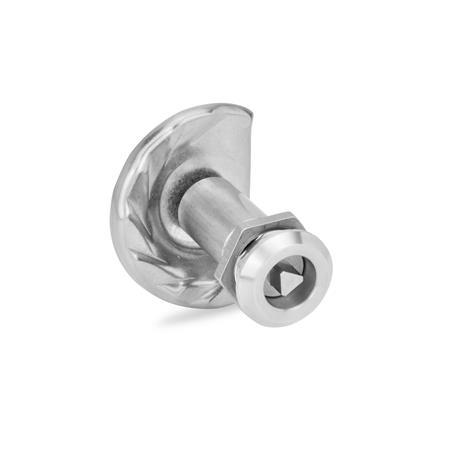

GN 119 Stainless Steel Latches
Type
| SG | With star knob |
| DK | With triangular spindle |
| VK7 | With square spindle |
| VK8 | With square spindle |
| VDE | With double bit |
| Clamping range A1 ... A9 (Door + frame thickness) | ||||||||
|---|---|---|---|---|---|---|---|---|
| A 1 (l=35) | A 2 (l=40) | A 3 (l=45) | A 4 (l=50) | A 5 (l=55) | A 6 (l=60) | A 7 (l=65) | A 8 (l=70) | A 9 (l=75) |
| 17 - 25 | 22 - 30 | 27 - 35 | 32 - 40 | 37 - 45 | 42 - 50 | 47 - 55 | 52 - 60 | 57 - 65 |
Filter combination produces no result.
Specification
Stainless steelNI AISI 303
(Cam latch AISI 304)
Stainless steel star knob GN 5334
AISI 304
Protection class IP 65
RoHS
(Cam latch AISI 304)
Stainless steel star knob GN 5334
AISI 304
Protection class IP 65
RoHS
Accessory
Socket Keys GN 119.2Protective Caps GN 120
Opening Handles GN 120.1
Information
Stainless steel latches GN 119 have a pulling-in range of 10 mm. Locking is achieved by turning the latch clockwise.
The operating bolt is fitted with an O-ring.
see also...
| How to order |
| ||||||
GN 119-SG-A3-NI |
RoHS compliant:
-
-
