Stainless Steel, with 2 Mounting Holes
GN 145.1 Flanged Linear Actuator Connectors
Identification no.
| 2 | With stainless steel socket cap srew DIN 912 |
with sleeve bearing | d2 | d3 Mounting screws on the drive key | k Clamping length | l1 | l2 | m | t | x | y1 | y2 | z Screw location | Accessory recom. hand lever for z GN 911.3 l3 | GN 911.3 for stainless steel l3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| G 18 | 5,5 | M 3 | 25 | 40 | 25 | 18 | 7 | 35 | 50 | 38 | M6-20 | 63 | - |
Filter combination produces no result.
Specification
Stainless steelNI AISI CF-8
Sleeve bearing
Plastic (PTFE)
Socket cap screws DIN 912
Stainless steel AISI 304
Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring
RoHS
- Matte shot-blasted
- Only with sleeve bearing
Sleeve bearing
Plastic (PTFE)
Socket cap screws DIN 912
Stainless steel AISI 304
Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring
RoHS
Accessory
Adjustable Hand Levers GN 911.3Information

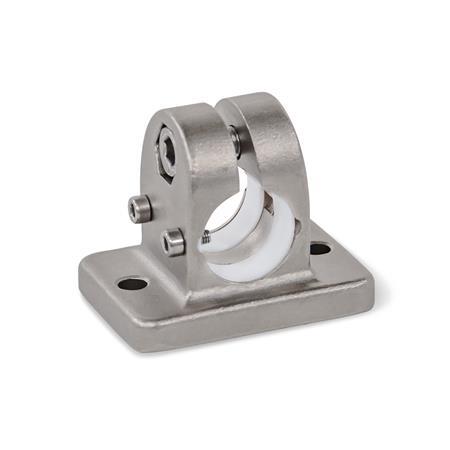

Flanged linear actuator connectors GN 145.1 are based on flanged connector clamps. The additionally provided mounting holes are used to connect to the drive key of a linear actuator. Bores with the designation G are equipped with sleeve bearings.
With the screw location z, the play of the guide bores d1 can be adjusted or the linear actuator connectors can be clamped after adjustment.
For quick clamping without tools, the socket cap screw can be replaced by the adjustable hand levers GN 911.3 listed in the table as accessories.
| How to order |
| ||||||
GN 145.1-G18-2-NI |
