Retractable Mechanism Steel, Locked in Operating Position

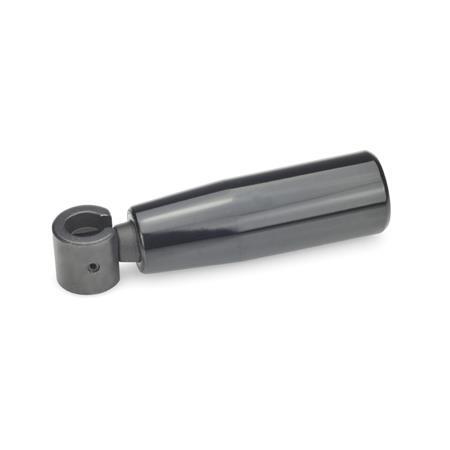

GN 598.3 Retractable Handles
| d1 | d2 | d3 | l1 ≈ | l2 | l3 | l4 ≈ | l5 |
|---|---|---|---|---|---|---|---|
| 18 | M 5 | 16 | 57 | 15 | 5 | 52 | 9,5 |
| 21 | M 5 | 16 | 67 | 15 | 5 | 62 | 9,5 |
| 22 | M 5 | 16 | 73 | 15 | 5 | 68 | 9,5 |
| 23 | M 6 | 20 | 87 | 19,5 | 6 | 80 | 10,5 |
| 26 | M 6 | 20 | 102 | 19,5 | 6 | 95 | 10,5 |
| 28 | M 8 | 26 | 118 | 26 | 10 | 106 | 16 |
Filter combination produces no result.
Specification
Handle
PlasticKU
Duroplast (Phenolic PF)
Retractable mechanism
Steel
Blackened
RoHS
PlasticKU
Duroplast (Phenolic PF)
- Temperature resistant up to 110 °C
- Black, shiny finish
- Revolving
Retractable mechanism
Steel
Blackened
RoHS
Information
Retractable handles GN 598.3 are used when the handle should not protrude temporarily for space or safety reasons.
| How to order |
| ||||
GN 598.3-KU-26 |
