with Slip Proof

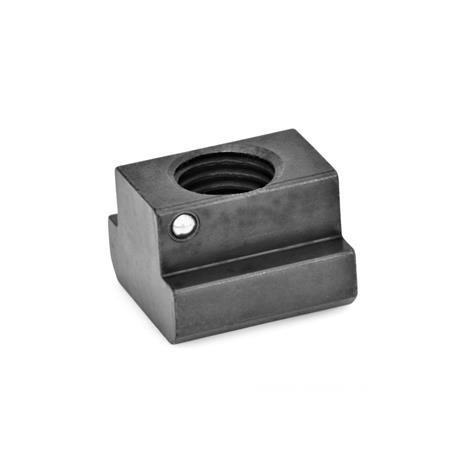

GN 508.2 T-Nuts, Steel, zinc plated / blackened
| a -0,3/-0,5 | d | e | h | k | s | For T-slots DIN 650 |
|---|---|---|---|---|---|---|
| 10 | M 8 | 15 | 12 | 6 | 0,65 | 10 |
| 12 | M 10 | 18 | 14 | 7 | 0,65 | 12 |
| 14 | M 12 | 22 | 16 | 8 | 1 | 14 |
| 18 | M 16 | 28 | 20 | 10 | 1 | 18 |
| 22 | M 20 | 35 | 28 | 14 | 1,6 | 22 |
Filter combination produces no result.
Specification
Heat-treated steel
RoHS
- Property class 8 zinc plated, blue passivated8
Zinc plated, blue passivated - Property class 10 10
Blackened
RoHS
Information
T-nuts GN 508.2 are dimensionally identical to DIN 508.
They are, however, fitted on the side with a spring loaded element (ball / pressure spring). This will prevent an unwanted movement of the nut, especially in a vertically mounted T-slot bed.
| How to order |
| ||||||
GN 508.2-22-M20-10 |
