Accessory for Profile Systems, without Guide Step

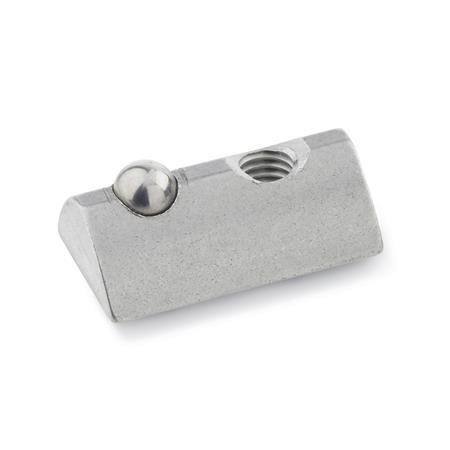

GN 506.1 Stainless Steel T-Nuts

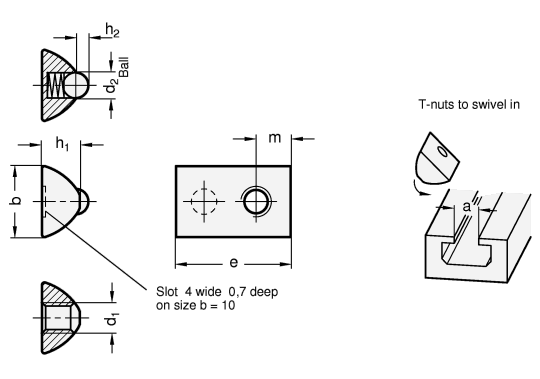

| b -0,2 | d1 | d2 | e +0,5 | h1 | h2 | m | For slot width a | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 14 | M 4 | M 5 | M 6 | M 8 | 5 | 22,5 | 7,4 | 1,7 | 6,8 | 8 |
Filter combination produces no result.
Specification
Stainless steelNI
Ball
Stainless steel
Spring
Stainless steel
RoHS
Ball
Stainless steel
Spring
Stainless steel
RoHS
Information
T-nuts GN 506.1 can be turned into position, i.e. they can be inserted at any point along the slot.
The spring-loaded element (ball / thrust spring) prevents unwanted movement of the nut in the slot, which is particularly useful for vertically oriented T-slots.
As an example T-nuts GN 506.1 can be used to fit hinges to commercially available extrusion rails.
| How to order |
| ||||||
GN 506.1-14-M5-NI |
RoHS compliant:
-
-
Weight:
-
-
PDF not available
