Operation with Socket Keys
GN 115 Latches
Type
| DK | With triangular spindle |
| VK7 | With square spindle |
| VK8 | With square spindle |
| SCH | With slot |
| VDE | With double bit |
| SK10 | With hexagon |
| Latch distance A | d | h | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 8 | 13 | 16 | 20 | 24 | 28 | 32 | 36 | 40 | 45 | 28 | 4 |
| 6 | 10 | 14 | 18 | 22 | 26 | 30 | 34 | 38 | 42 | 50 | 28 | 4 |
Filter combination produces no result.
Specification
Lock housing
Zinc die casting
Housing collar, chrome plated
All other parts
Steel zinc plated, blue passivated
Protection class IP65
RoHS
Zinc die casting
Housing collar, chrome plated
All other parts
Steel zinc plated, blue passivated
Protection class IP65
RoHS
Accessory
Socket keys GN 119.2Protective Caps GN 120
Opening Handles GN 120.1
Protective Guide Plates GN 120.2
On request
Other operations
Information

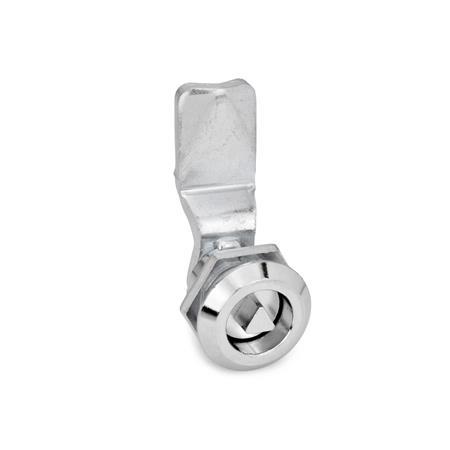

Latches GN 115 lock by a turning operation limited to 90° which moves the locking behind the door frame. The bevels of the latch ease the closing of the door.
Latch arms are available with different bend angles to cover a latch arm distance A from 4 to 50 mm.
Latches GN 115 are supplied with loosely enclosed latch.
| How to order |
| ||||
GN 115-VK8-20 |
