Long Version, Steel

GN 350 Leveling Sets, Steel, zinc plated / stainless steel

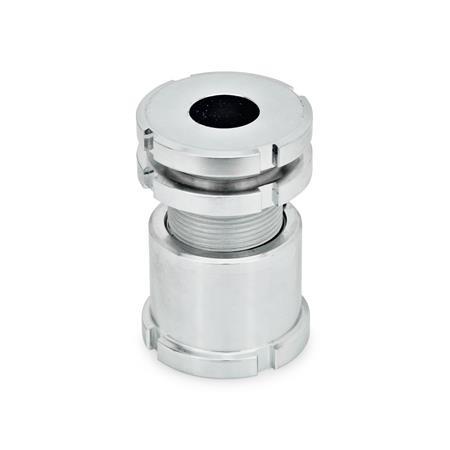

Leveling Sets Steel zinc plated stainless steel GN 350 thumbnail

Leveling Sets Steel zinc plated stainless steel GN 350 sketch

Type

A	Without lock nut
AK	With lock nut

Show filter

d₁	d₂	d₃	h₁ Type A	Type AK	h₂	h₃ Adjustable range Type A	Type AK	for screw	Static load F in kN F₁	F₂	Code no. C-Spanner

25	6,6	M 15 x 1	28	33	43	15	10	M 6	40	30,7	DIN 1810-A25-28
32	6,6	M 20 x 1	35	41	55	20	14	M 6	65	55,7	DIN 1810-A30-32
32	9	M 20 x 1	35	41	55	20	14	M 8	65	48	DIN 1810-A30-32
32	11	M 20 x 1	35	41	55	20	14	M 10	65	37,9	DIN 1810-A30-32
45	11	M 30 x 1,5	42	49	67	25	18	M 10	120	92,9	DIN 1810-A45-50
45	13,5	M 30 x 1,5	42	49	67	25	18	M 12	120	80,4	DIN 1810-A45-50
45	17,5	M 30 x 1,5	42	49	67	25	18	M 16	120	45,5	DIN 1810-A45-50
58	17,5	M 40 x 1,5	54	63	86	32	23	M 16	210	136	DIN 1810-A58-62
58	22	M 40 x 1,5	54	63	86	32	23	M 20	210	90	DIN 1810-A58-62
58	26	M 40 x 1,5	54	63	86	32	23	M 24	210	37	DIN 1810-A58-62
70	22	M 50 x 1,5	66	77	106	40	29	M 20	330	210	DIN 1810-A68-75
70	26	M 50 x 1,5	66	77	106	40	29	M 24	330	157	DIN 1810-A68-75
70	33	M 50 x 1,5	66	77	106	40	29	M 30	330	53	DIN 1810-A68-75
80	26	M 60 x 2	76	87	126	50	39	M 24	495	322	DIN 1810-A80-90
80	33	M 60 x 2	76	87	126	50	39	M 30	495	218	DIN 1810-A80-90
80	39	M 60 x 2	76	87	126	50	39	M 36	495	101	DIN 1810-A80-90

Filter combination produces no result.

Specification

SteelST, 1.7225 (42 CrMo 4 V)
Zinc plated, blue passivated

F₁: max.total load

F₂: max. load after deduction
of the max. preload
for screws 8.8, µ = 0,125

RoHS

Accessory

C-Spanner DIN 1810
(code no. see table)

Information

Leveling sets GN 350 are used for leveling and linking operations. They comprise a threaded upper sleeve and an internal threaded lower sleeve. The fine thread allows a stepless and precise setting and locking using the C-Spanner DIN 1810. A locking ring serves also as a height limiter for the max. height.

Normally this screw is permanently and securely locked by the static load created when the mounting screw is tightened.

Should this not be sufficient, the use of a locknut (Type AK) is recommended.
