for Roller Track Assemblies

GN 646.4 Containment Edge Strip

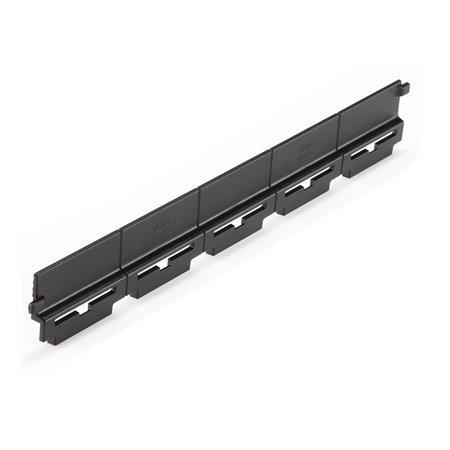

Containment Edge Strip GN 646.4 thumbnail Zoom ELESA

for Roller Track Assemblies

GN 646.4 Containment Edge Strip

Containment Edge Strip GN 646.4
© Copyright
Otto Ganter GmbH & Co. KG
Photo can differ
ELESA original design RLT-CEInfo
Zoom Containment Edge Strip GN 646.4 sketch

Length
270
Filter combination produces no result.

Specification

Plastic
Technopolymer (Polyamide PA)
  • Black
  • Temperature resistant up to 90 °C

RoHS

Information

The containment edge strip GN 646.4 keeps the material conveyed within the range of the roller track assemblies.

They can be snapped onto existing roller track assemblies.

The containment edges are not designed for use with roller track assemblies (ball track GN 646.2).

At the separation points, the containment edge strip can be shortened to individual total lengths at intervals of 54 mm (2 x 27 mm).

How to order
1Length
GN 646.4-270

RoHS compliant: Info -
Weight: Info -
