with Full Extension and Self-Retracting Mechanism, Load Capacity up to 1290 N

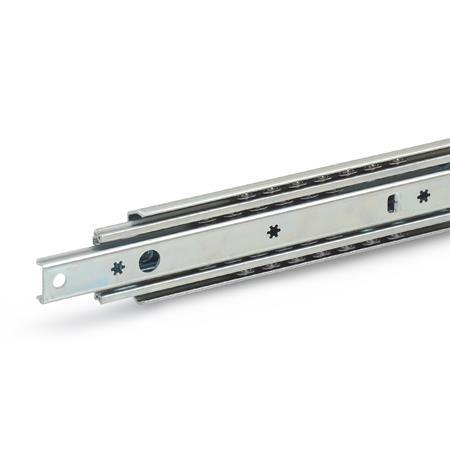

GN 1422 Telescopic Slides

Type

B	With rubber stop

Identification no.

2	Fastening using countersunk holes

Show filter

l₁	l₂ +4/-4 Stroke	l₃	F_s per pair in N at 10,000 cycles	at 100,000 cycles

300	285	585	940	640
350	350	700	960	730
400	400	800	970	770
450	450	900	1100	880
500	500	1000	1190	900
550	550	1100	1180	980
600	600	1200	1230	990
700	700	1400	1290	1030
800	800	1600	1210	1060

Filter combination produces no result.

Specification

Slide profile
Steel, Zinc plated, blue passivatedZB

Bearings
Roller bearing steel, hardened

Ball cage
Steel, zinc plated

Rubber stop
Plastic / Elastomer

Self-retracting mechanism
Stainless steel / Plastic

Operating temperature -20 °C to 100 °C

Telescopic Slides - Application Video

Mounting holes to GN 1422

Telescopic Slides - Highlights

Telescopic Slides - General Notes and Overview of Types

Telescopic Slides - Mounting and Technical information

Telescopic Slides - Component Options and Fastening Options

RoHS

On request

Other lengths and hole spacing

Other attachment options

With locking device (front)

Other surfaces

With support bracket

Information

Telescopic slides with self-retracting mechanism GN 1422 are installed vertically and in pairs. The stroke reaches ≈ 100 % of the nominal length l₁ (full extension).

The telescopic slides are delivered in pairs. They can be installed on the extension on either the left or right side due to the mechanics. All mounting holes are easy to reach through auxiliary holes. Only the mounting holes are shown, but other production-related holes may be present.
