Plastic, Type B / Type C

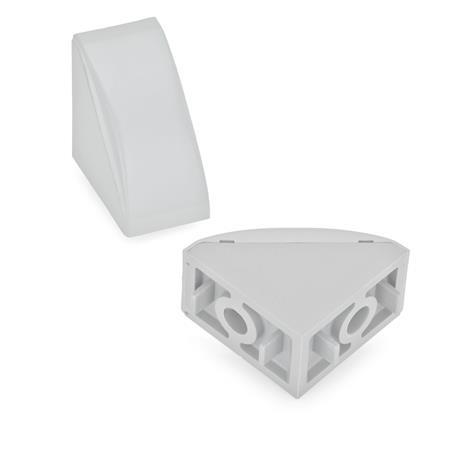

GN 561 Fixing Angle Pieces
Original design SQT.
Type
| B | 2 x bores d, with guide steps |
| C | 1 x slotted hole b°°2°°, without guide steps, 1 x bore d, with guide steps |
Identification no.
| 1 | without cover cap |
| 2 | with cover cap |
| b1 | n | s1 | s2 | b2 | b3 | d | h min. | l1 | l2 | l3 | s3 | Load capacity M in Nm max. | Tightening torque in Nm min. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 19 | 8 | 40 | 40 | 8,5 | 15 | 8,5 | 4 | 14,5 | 13 | 22,5 | 7 | 25 | 5 |
| 25 | 8 | 40 | 40 | 8,5 | 20 | 8,5 | 4 | 14,5 | 13 | 22,5 | 7 | 30 | 5 |
Filter combination produces no result.
Specification
Plastic
Technopolymer (Polyamide PA)
Cover cap
Plastic
Technopolymer (Polyester PBT)
Gray, similar to RAL 7046, matte finish
RoHS
Technopolymer (Polyamide PA)
- Glass fiber reinforced
- Temperature resistant up to 100 °C
- Gray RAL 7046, matte finish
Cover cap
Plastic
Technopolymer (Polyester PBT)
Gray, similar to RAL 7046, matte finish
RoHS
Information
In order to be able to utilize the adjustment range of the types with slotted hole for fixing angle pieces GN 561, it is recommended to use mounting screws with a low head, e.g. socket cap screws DIN 6912 or socket button head screws ISO 7380.
Fixing angle pieces GN 561 are components designed for universal use.
| How to order |
| ||||||||||||
GN 561-19-8-40-40-B-2 |
