for Side Thrust Pins GN 714 / GN 715
GN 715.2 Eccentric Bushings
| d1 | d2 h9 | d3 H7 | d4 | d5 +0,1 | e | h min. | l -0,2 | t | For side thrust pins Ø | |
|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 12 | 12 | M 4 | 6,2 | 2 | 10 | 9,9 | 4,4 | 3 | - |
| 10 | 16 | 16 | M 4 | 10,2 | 2 | 12 | 11,9 | 5,4 | 5 | 6 |
| 12 | 18 | 18 | M 4 | 12,2 | 2 | 14 | 13,9 | 6,6 | 8 | - |
| 16 | 25 | 25 | M 6 | 16,2 | 3 | 18 | 17,9 | 7,9 | 10 | - |
Filter combination produces no result.
Specification
Steel
Blackened
Grub screw
Stainless steel
RoHS
Blackened
Grub screw
Stainless steel
RoHS
Information

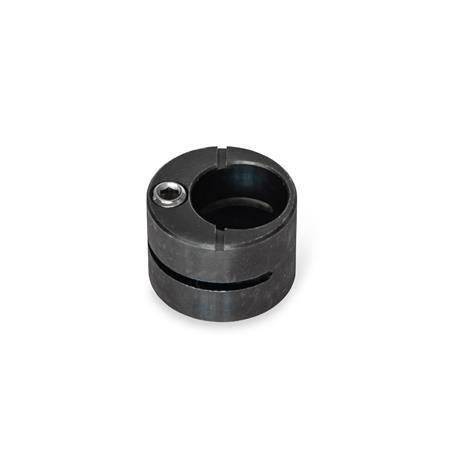

Eccentric bushings GN 715.2 allow side thrust pins GN 715 / GN 714 to be adjusted. These bushings allow the side thrust pin to be precisely adjusted to suit the requirements for clamping of a component.
| How to order |
| ||
GN 715.2-6 |
