Steel

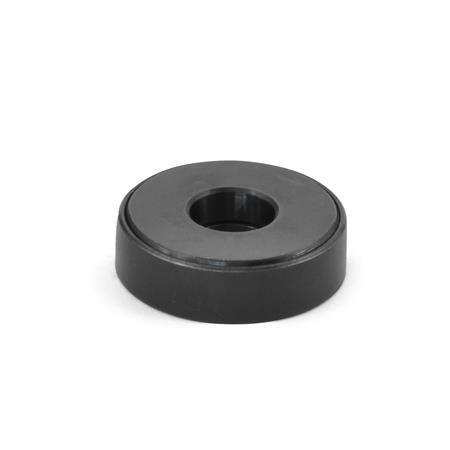

GN 6342 Washers with Axial Friction Bearing, blackened
| d1 | d2 +0,2/+0,4 | d3 | h | for screws with thread | Static load in kN |
|---|---|---|---|---|---|
| 20 | 6 | 16 | 6 | M 6 | 20 |
| 26 | 8 | 22 | 7 | M 8 | 38 |
| 28 | 10 | 24 | 8 | M 10 | 40 |
| 32 | 12 | 28 | 9 | M 12 | 55 |
Filter combination produces no result.
Specification
SteelST
Blackened
Sliding disk
RoHS
Blackened
Sliding disk
- Plastic (Polyamide 46)
- Glass fiber reinforced
- Temperature resistant up to 120 °C
- Slightly greased (PTFE-mounting grease)
RoHS
Information
Used in connection with clamping screws, e.g. star knob screws, washers with axial friction bearing GN 6342 offer the following advantages:
- almost double the clamping force owing to lower area friction
- fixed contact surface acting gently on the element to be clamped
| How to order |
| ||||||
GN 6342-ST-28-10 |
