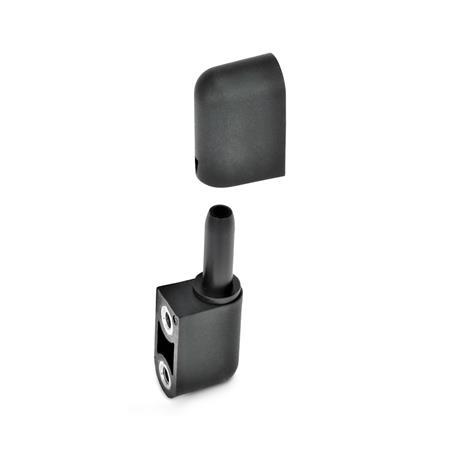

Detachable, with Eccentric Pin, Plastic
GN 160 Hinges
ELESA original design CFN.
Form
| A | 2x2 threaded blind bores |
| B | 2x2 threaded studs |
| C | 2x threaded studs (at the eccentric pin) 2x threaded blind bores |
| D | 2x threaded blind bores (at the eccentric pin) / 2x threaded studs |
| l1 | l2 | a | b | d1 | d2 | l3 | l4 | m | t |
|---|---|---|---|---|---|---|---|---|---|
| 28 | 64 | 2 | 14,5 | M 5 | 8 | 6 | 12 | 19 | 7,5 |
Filter combination produces no result.
Specification
Plastic (Polyamide PA)
Pin
Plastic (Polyacetal POM)
Threaded bushings
Brass nickel plated
Threaded studs
Steel nickel plated
RoHS
- Glass fiber reinforced
- Black, matte finish
- Temperature resistant up to 80 °C
Pin
Plastic (Polyacetal POM)
Threaded bushings
Brass nickel plated
Threaded studs
Steel nickel plated
RoHS
Information
On hinges GN 160 the two pin halves which form the fulcrum are offset from each other by 0.5 mm and therefore, eccentric. Hence the position of the door can be altered or re-adjusted in relation to the frame.
| How to order |
| ||||||
GN 160-28-64-B |
RoHS compliant:
-
-
Weight:
-
-
