with Internal Thread

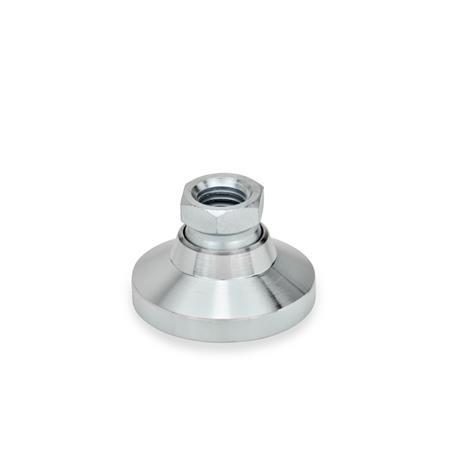

GN 343.1 Leveling Feet

Type

OS	Without plastic cap
KS	With plastic cap, gliding
KR	With plastic cap, non-gliding
KSE	With plastic cap, gliding, ESD compliant
KRE	With plastic cap, non-gliding, ESD compliant

Show filter

d₁	d₂	l₂	l₃	l₄	l₅	A/F	t min.

25	M 6	19	20,5	4	5,5	12	9
25	M 8	19	20,5	4	5,5	12	9
32	M 8	23	24,5	5	6,5	12	9
32	M 10	23	24,5	5	6,5	15	10,5
40	M 10	26	27,5	6	7,5	15	10,5
40	M 12	26	27,5	6	7,5	17	11,5
50	M 10	28	29,5	7	8,5	15	10,5
50	M 12	28	29,5	7	8,5	17	11,5
60	M 12	36	37,5	8,5	10	17	11,5
60	M 16	36	37,5	8,5	10	24	16

Filter combination produces no result.

Specification

Steel
Property class 5.8
Zinc plated, blue passivated

Type KS/KSE
Plastic cap polyacetal (POM)

KS: white (natural color) RAL 9001
KSE: black,
electrically conductive (antistatic)
ESD compliant acc. to
DIN EN 61340-5-1 / DIN EN 61340-5-3

Type KR/KRE
Plastic cap elastomer (TPE)
78 Shore A ≈

KR: black
KRE: black,
electrically conductive (antistatic)
ESD compliant acc. to
DIN EN 61340-5-1 / DIN EN 61340-5-3

ESD Certificate

Elastomer Characteristics

Plastic Characteristics

RoHS

Information

The static load of the leveling feet GN 343.1 is limited by the load capacity of the ball joint (property class 5.8).

The static load values (only valid for type OS, KS and KSE) in the above table refer to a net vertical load in relation to the leveling foot. Under normal operating conditions side loading or angular loading is not uncommon and the load capacity would be considerably reduced which must be taken into consideration.

Leveling feet of type KSE / KRE have conductive plastic caps that prevent the build-up of electrostatic charges. The ESD conformity has been tested and confirmed as per DIN EN 61340-5-1 / DIN EN 61340-5-3.

Leveling feet GN 343.1 cannot be disassembled.
