for T-Nuts

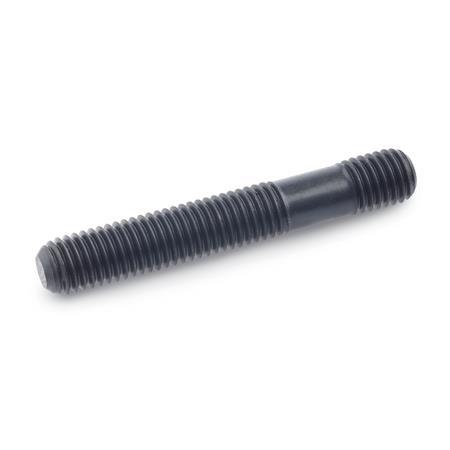

DIN 6379 Studs
| d1 | Length l - Thread length b1 l - b1 | l - b1 | l - b1 | l - b1 | b2 | d2 |
|---|---|---|---|---|---|---|
| M 6 | 50 - 30 | 80 - 50 | - | - | 9 | 5,3 |
| M 8 | 40 - 20 | 63 - 40 | 100 - 63 | - | 11 | 7,1 |
| M 10 | 50 - 25 | 80 - 50 | 125 - 75 | 200 - 125 | 13 | 9 |
| M 12 | 50 - 25 | 80 - 50 | 125 - 75 | 200 - 125 | 15 | 10,7 |
| M 14 | 63 - 32 | 100 - 63 | 160 - 100 | 250 - 160 | 17 | 12,6 |
| M 16 | 63 - 32 | 100 - 63 | 160 - 100 | 250 - 160 | 19 | 14,6 |
| M 20 | 80 - 32 | 125 - 70 | 200 - 125 | 315 - 190 | 27 | 18,2 |
| M 24 | 100 - 50 | 160 - 100 | 250 - 160 | 400 - 250 | 35 | 21,9 |
Filter combination produces no result.
Specification
Heat-treated steel
RoHS
- M6 ... M12: Property class 10.9
- M14 ... M24: Property class 8.8
- Blackened
RoHS
Information
Studs DIN 6379 are primarily used with T-nuts DIN 508.
Complete clamping screws can be created by combining them with hexagon nuts DIN 6330 and washers DIN 6340.
The official DIN standard sheet also specifies a version with longer thread b2 as well as thread M30 and M36; however, size M14 is not included.
| How to order |
| ||||
DIN 6379-M12-125 |
RoHS compliant:
-
-
Weight:
-
-
PDF not available
