with Axial Lock (Pawl)

GN 114.2 Locking Pins, steel, zinc plated

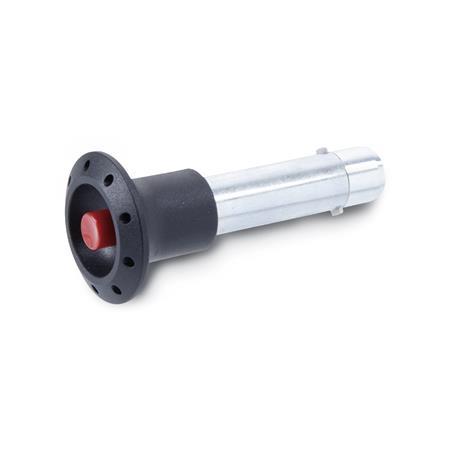

Locking Pins steel zinc plated GN 114.2 thumbnail

Locking Pins steel zinc plated GN 114.2 sketch

Show filter

d₁ -0,1	l₁ +0,4 minimum size															a	b	d₂	d₃	d₄	d₅	l₂	l₃

6	10	12	16	20	25	30	35	40	45	50	60	70	80	-	-	2,3	0,5	7,5 +0,5	5,9	15	30	7	21
8	10	16	20	25	30	35	40	45	50	60	70	80	90	100	-	2,8	0,6	10 +0,5	7,9	15	30	8,4	21
10	15	20	25	30	35	40	45	50	60	70	80	90	100	110	120	3,3	1	12 +1	9,9	18	34	9,8	26
12	20	25	30	35	40	45	50	60	70	80	90	100	110	120	-	3,8	1	14 +1	11,9	18	34	11,3	26
16	30	35	40	45	50	60	70	80	90	100	110	120	130	140	150	4,8	1,2	19 +1	15,9	22	40	14,2	32
20	30	35	40	45	50	60	70	80	90	100	110	120	130	140	150	4,8	1,2	23 +1	19,8	25	40	14,8	33

Filter combination produces no result.

Specification

Pin
Steel
Zinc plated, blue passivated

Pawl
Stainless steel AISI 304 (sheet metal)

Knob
Plastic (Polyamid PA)

Black-gray
Temperature resistant up to 80 °C

Push button / Slide
Plastic

Push button: red
Temperature resistant up to 80 °C

Pressure spring
Stainless steel AISI 301

Load Capacity of Ball Lock Pins / Locking Pins

Stainless Steel Characteristics

Plastic Characteristics

RoHS

Accessory

Ball Chains GN 111

Retaining Cables GN 111.2

Spiral-Retaining Cables GN 111.4

Information

Locking pins with axial lock GN 114.2 are used for quick fixing, connecting and locking of various jig and fixture systems. A typical application is location pins which have to be often removed and re-placed again.

The rectangular pawls made of stainless steel sheet metal keep the locking pin in an axial position in the bore. It can be retracted by pressing the button, once released it returns the pressure spring into its locking position.

The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).
