for Indexing Plungers / Cam Action Indexing Plungers

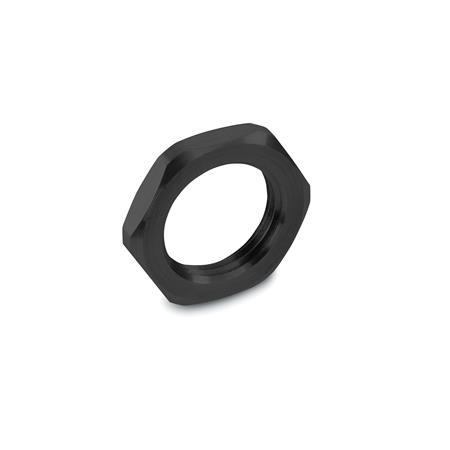

GN 909 Thin Hex Nuts, steel, blackened
| d | b | e | s |
|---|---|---|---|
| M 8 x 1 | 3,5 | 14,3 | 13 |
| M 10 x 1 | 3,5 | 16,6 | 15 |
| M 12 x 1,5 | 4 | 18,9 | 17 |
| M 16 x 1,5 | 4,5 | 24,5 | 22 |
| M 20 x 1,5 | 4,5 | 29,5 | 27 |
Filter combination produces no result.
Specification
Steel
BlackenedBT
RoHS
BlackenedBT
RoHS
Information
With their smaller dimensions, thin hex nuts GN 909 expand the mounting options of indexing plungers and cam action indexing plungers.
| How to order |
| ||||
GN 909-M10x1-BT |
