Detachable, for Welding / Aluminum
GN 128.2 Hinges

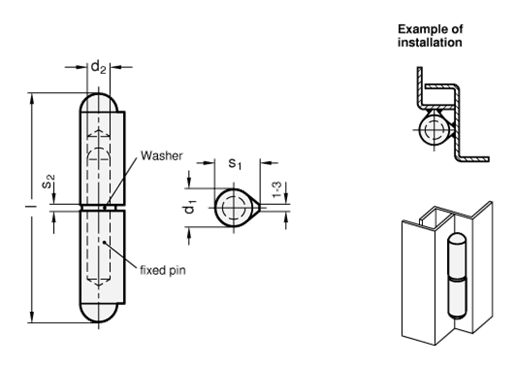

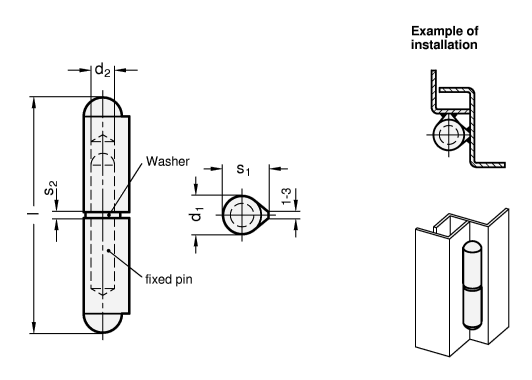

| Length l | d1 | d2 Pin | s1 | s2 |
|---|---|---|---|---|
| 60 | 10 | 6 | 12 | 2 |
| 80 | 13 | 8 | 15,5 | 2 |
| 100 | 16 | 10 | 20 | 3 |
| 120 | 16 | 11 | 20 | 3 |
| 150 | 20 | 13 | 25,5 | 3 |
| 180 | 20 | 14 | 25,5 | 3 |
Filter combination produces no result.
Specification
AluminumAL
RoHS
- Weldable, 3.3206
- Pin / Washer
Stainless steel AISI 303
RoHS
Information

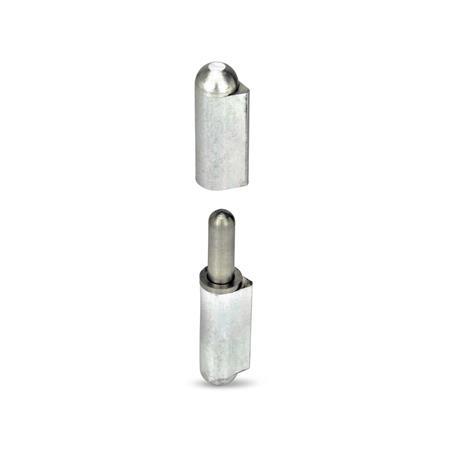

Hinges GN 128.2 are produced from drawn weldable profiled aluminum extrusions.
The pin is fixed in the lower half.
see also...
| How to order |
| ||||
GN 128.2-80-AL |
