GN 163.15 Base Plate Linear Actuator Connectors

Base Plate Linear Actuator Connectors GN 163.15 thumbnail

Base Plate Linear Actuator Connectors GN 163.15 sketch

Identification no.

4	With stainless steel cap nut DIN 917

Type

A	Without seals
B	With seals

Show filter

d₁ Bore with sleeve bearing	b	d₂	d₃	d₄ Mounting screws on the drive key	k Clamping length	l₁	m	t	x₁	x₂	y₁	y₂	z Screw location	Accessory Recom. hand lever GN 911.3 for z l₂

G 30	22	6,5	37	M 4	50	36	35	6,5	60	42	60	42	M 8	63 \| 78
G 50	30	10,7	60	M 6	85	48,5	60	9	105	74	105	74	M 10	78 \| 92

Filter combination produces no result.

Specification

Stainless steel AISI CF-8
Matte shot-blasted

Sleeve bearing
Plastic (PTFE)

Carriage bolt DIN 603
Stainless steel

Cap nuts DIN 917 / Washers
Stainless steel

Seals

Sealing disks
Plastic (Polyacetal POM)
Spacer ring
Silicon, 40 ... 60 Shore A

Plastic Characteristics

Stainless Steel Characteristics

RoHS

Accessory

Adjustable Hand Levers GN 911.3

Information

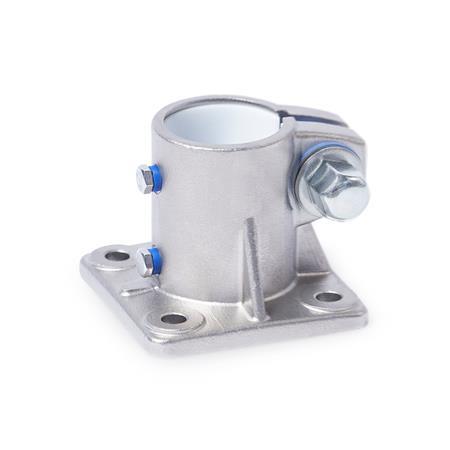

Flanged linear actuator connectors GN 163.15 are based on flanged connector clamps. The additionally provided mounting holes are used to connect to the drive key of a linear actuator. Bores with the designation "G" are equipped with sleeve bearings.

With the screw location z, the play of the guide bores d₁ can be adjusted or the linear actuator connectors can be clamped after adjustment. Type B is equipped with seals at the screw locations.

For quick clamping without tools, the cap nut can be replaced by the adjustable hand levers GN 911.3 listed in the table as accessories.

How to order
